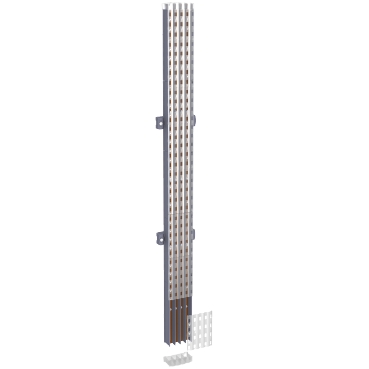

Linergy BW is used as insulated bar. The rated insulation voltage is 1000V. The rated operational current is 630A. It has IPxx B protection and busbar connection with M6 threaded hole. It could be installed in the cubicle, Floor-standing enclosure, and Wall-mounted enclosure. Its installation directions is vertical, rear operating position. Sold in lots of 1 unit. It passed 2.5G seismic tests with structure reinforcement conforming to IEC 60068-2-57. It is certified by ASEFA. It is compliant with both IEC 61439-1 and IEC 61439-2. It is also compliant with Green Premium (RoHS/REACH).
