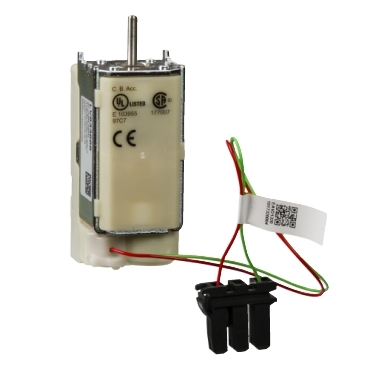

* Image is indicative. The actual product may differ in appearance.
MN undervoltage release -24V AC 24/30 V DC-for fixed MTZ spare part
LV833668SP
In stock: 2 PCS
€148.69 / PCS
Unit of measure: PCS
Brand:
Tags:
| Maximum response time | 45 ms on opening for MasterPact MTZ1 95 ms on opening for MasterPact MTZ2 95 ms on opening for MasterPact MTZ3 |
|---|---|
| Range | MasterPact |
| Device short name | MN |
| Product or component type | Undervoltage release |
| Device application | Safety |
| Range compatibility | Masterpact MasterPact MTZ1 circuit breaker Masterpact MasterPact MTZ2 circuit breaker Masterpact MasterPact MTZ3 circuit breaker |
| Voltage release type | Instantaneous |
| Control type | Standard |
|---|---|
| [Un] voltage power supply | 24 V AC 50/60 Hz 24...30 V DC |
| Threshold tripping voltage | 0.35...0.7 Un opening 0.85 Un closing |
| Holding power consumption | 4.5 W |
| Circuit breaker mounting mode | Fixed/drawout |
| Provided equipment | 1 instruction sheet |
| Offer type | Spare part |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 3.6 cm |
| Package 1 Width | 6.0 cm |
| Package 1 Length | 8.6 cm |
| Package 1 Weight | 212.0 g |
| Unit Type of Package 2 | S04 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 30.0 cm |
| Package 2 Width | 40.0 cm |
| Package 2 Length | 60.0 cm |
| Package 2 Weight | 4.955 kg |
| Warranty (in months) | 18 |
|---|
