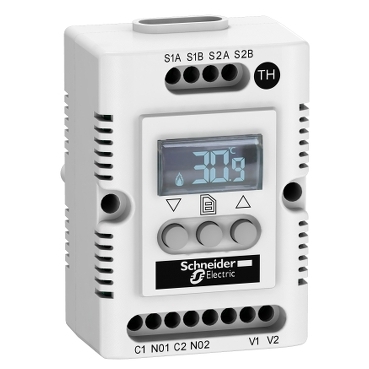

TERMOSTAT DIGITAL
NSYCCOTH30VID
In stock: 2 PCS
€0 / PCS
Unit of measure: PCS
Tags:
| Range | ClimaSys |
|---|---|
| Product name | ClimaSys CC |
| Product or Component Type | Electronical thermostat |
| Temperature setting range | -40…176 °F (-40…80 °C) |
| Display Type | OLED screen |
| Information Displayed | Temperature in °F Temperature in °C |
| Input voltage | 9...30 V AC/DC |
|---|---|
| Sensor Type | Optional NTC external sensor |
| Maximum switching capacity | 4 A 30 V AC/DC |
| Electrical connection | 10 terminals 2.5 mm² |
| Mounting Mode | By screws Clipped |
| Height | External: 3.3 in (85 mm) |
| Width | External: 2.2 in (56 mm) |
| Depth | External : 1.7 in (44 mm) |
| Mounting Location | On mounting plate Cross rails 35 mm DIN rail Spacial upright |
| Ambient air temperature for operation | -40…176 °F (-40…80 °C) |
| Hysteresis | 2 K programmed value |
| Number of outputs | 2 ventilation/heating function |
| Material | PC |
| Color | Light gray |
| Flame retardance | Self-extinguishing conforming to UL94 (material V0) |
| Product Certifications | UR |
| Category | US10ES180036 |
|---|---|
| Discount Schedule | 0ES1 |
| GTIN | 3606480152603 |
| Returnability | No |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 2.165 in (5.500 cm) |
| Package 1 Width | 2.953 in (7.500 cm) |
| Package 1 Length | 3.346 in (8.500 cm) |
| Package weight(Lbs) | 4.868 oz (138.000 g) |
| Warranty (in months) | 18 |
|---|
